Bevel Helical Geared Motor

Features | Applications

Send Enquiry


Manufacturer of K Series Bevel Helical Geared Motor, Bevel Helical Gear motor, Gear box with motor

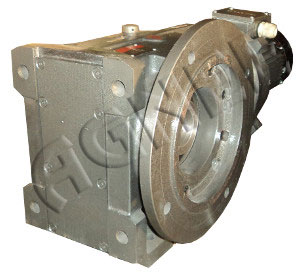

Bevel Helical Geared Motor / Helical Bevel Helical Geared Motor (AK Series)

Capacity Rating Chart:
Bevel Helical Geared Motor

1. Triple Reduction Bevel Helical Geared Motor AK03-AK12

2. Quintuple Reduction Bevel Helical Geared Motor AK06-AK12


Dimension Chart:
1. Bevel Helical Gear Box

Triple Reduction Bevel Helical Gearbox AK03-AK12

Quintuple Reduction Bevel Helical Gearbox AK06-AK12


2. Bevel Helical Geared Motor

Triple Reduction Bevel Helical Geared Motor AK03-AK12

Quintuple Reduction Bevel Helical Geared Motor AK06-AK12


Mounting Position (Base Mount, Flange Mount)

Approved Lubricants


We are manufacturing AK Series bevel helical geared motors which offer ratios from 8:1 to 160:1 in three stages or up to 10000:1 in five stages. Motors are available up to 90kW and output torque capacity up to 12,300 Nm.
The AK Series Helical Bevel Geared Motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts. Bevel Helical Geared Motor Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket and all variants are available either motorised or with an input shaft assembly.

Adding to the new range of AGNEE geared motors this product takes advantage of our many years of accumulated design expertise together with the use of high quality materials and components. The end result is a series of speed reducing geared motors offering high load carrying capacities, increased efficiency, quiet running and reliability.

AK Series Bevel helical geared motor are available in 9 sizes: AK03, AK04, AK05, AK06, AK07, AK08, AK09, AK10 and AK12

Features of Bevel Helical Geared Motor

Standard motor connection (IEC Frame).

Ability to fit double oil seals, on input and output shaft as required.

All units are dimensionally interchangeable with other major manufacturers.

Units are manufactured and assembled from a family of modular kits for distributor friendliness minimising inventory and maximising availability.

Motorised units can be fitted with a backstop module and reducer Units can be fitted with a backstop and fan.

Applications: Our Bevel Helical Geared Motors are widely used in Conveyors, Agitators, Elevators, Cranes, Crushers and other industrial applications. Bevel Helical Geared Motors are used as Travel drives, mixer drives and cable drum drives.

Industries covered:

  • Cement industry
  • Chemical industry
  • Pharma Industry
  • Coal industry
  • Salt industry
  • Ceramic industry
  • Sugar industry
  • Paper and pulp industry
  • Packaging Industry
  • Plastic Industry
  • Automation Industry
  • Iron and steel industry
  • Pharmaceuticals industry
  • Textile industry
  • Leather and plastic industry
  • Food processing industry
  • Other industries
Agnee Geared Motors:
Geared Motors Manufacturer-Bevel Helical Geared Motor, Inline Helical Geared Motor, Worm Geared Motor, Bevel Planetary Geared Motor
1. Bevel Helical Geared Motor

2. Inline Helical Geared Motors

3. Bevel Planetary Geared Motors

4. Worm Geared Motors
