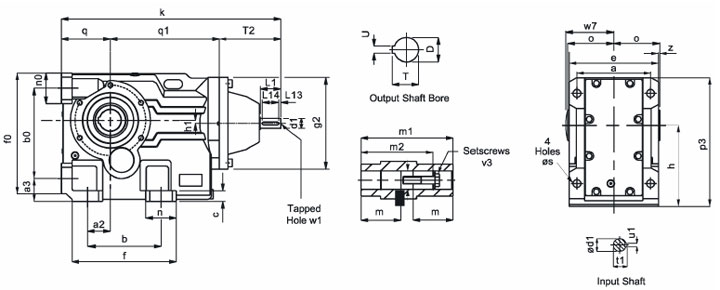

Dimensions Triple Reduction Bevel Helical Gearbox
(AK - Series)

Send Enquiry

Rating of Triple Reduction Bevel Helical Geared Motor


AK Series - Triple Reduction Helical Bevel Helical Gearbox - Sizes AK0332,AK0432,AK0532,AK0632,AK0732,AK0832,AK0931,AK1031,AK1231
AK Series - Triple Reduction Helical Bevel Helical Gearbox


SIZE

a

a2

a3

b

b0

c

e

f

f0

g2

h

h1

AK0332

100

28

32

110

115

11

120

143

152

140

100

16

AK0432

120

35

37

130

130

16

145

168

171

140

112

13

AK0532

130

30

45

130

150

15

157

170

192

180

132

5

AK0632

140

30

45

120

160

20

170

176

208

180

140

13

AK0732

165

40

55

150

200

27

200

210

263

212

180

25

AK0832

180

55

70

180

233

30

230

256

309

250

212

15

AK0931

240

75

75

240

295

35

290

340

395

300

265

10

AK1031

270

95

95

280

360

40

340

390

455

360

315

41

AK1231

330

115

110

350

420

45

400

470

540

400

375

65



SIZE

k

n

n0

o

p3

q

q1

T2

s

w7

z

AK0332

333

38

38

60

167

63

159

111

11

63

0

AK0432

361

38

40

75

187

71

179

111

11

78

2.5

AK0532

410

40

40

83

217

80

219

111

14

87

4.5

AK0632

430

55

48

90

233

90

229

111

14

94

5

AK0732

492

60

55

105

288

112

265

115

18

109

5

AK0832

622

76

76

120

341

132

330

160

23

124

5

AK0931

710

100

100

150

420

160

355

195

27

154

5

AK1031

856

110

115

175

513

200

423

233

34

180

5

AK1231

987

120

120

205

590

225

476

286

39

210

5



SIZE

Input Shaft

Hollow Output Bore

d1

L1

L13

L14

t1

u1

w1

D

m

m1

m2

m3

T

U

v3

AK0332

16 k6

40

4

32

18

5

M5x0.8,12deep

30

52.5

120

105

30.3

33.5

8

M10x50L

AK0432

16 k6

40

4

32

18

5

M5x0.8,12deep

35

66

150

132

35.3

38.5

10

M12x55L

AK0532

19 k6

40

4

32

21.5

6

M6x1.0,16deep

40

73

166

142

40.3

43.5

12

M16x70L

AK0632

19 k6

40

4

32

21.5

6

M6x1.0,16deep

40

80

180

156

40.3

43.5

12

M16x70L

AK0732

24 k6

50

5

40

27

8

M8x1.25,19deep

50

92.5

210

183

50.5

54

14

M16x70L

AK0832

28 k6

60

5

50

31

8

M10x1.5, 22deep

60

105

240

210

60.5

64.5

18

M20x80L

AK0931

38 k6

80

5

70

41

10

M12x1.75, 28deep

70

132.5

300

270

70.5

75

20

M20x80L

AK1031

42 k6

110

10

70

45

12

M16x2.0, 36deep

80

155

350

313

80.5

85.5

22

M20x80L

AK1231

55 k6

110

10

90

59

16

M20x2.5, 42deep

100

180

410

373

100.5

106.5

28

M24x110L

all parallel keys are to DIN 6885
