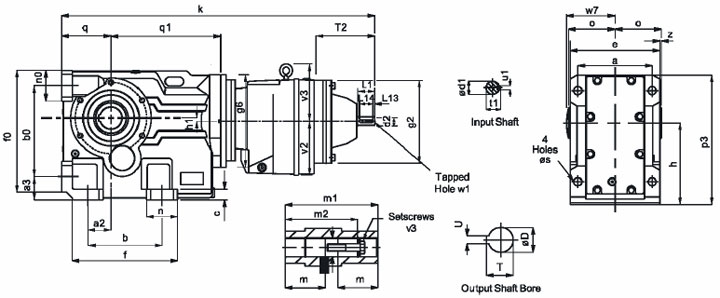

Dimensions Quintuple Reduction Helical Bevel Helical Gearbox (AK - Series)

Send Enquiry

Rating of Quintuple Reduction Helical Bevel Helical Geared Motor


Quintuple Reduction Helical Bevel Helical Gearbox-AK Series-AK0652,AK0752,AK0852,AK0951,AK1051,AK1251
AK Series - Quintuple Reduction Helical Bevel Helical Gearbox


SIZE

a

a2

a3

b

b0

c

e

f

f0

g2

g6

h

h1

AK0652

140

30

45

120

160

20

170

176

208

140

180

140

13

AK0752

165

40

55

150

200

27

200

210

263

140

180

180

25

AK0852

180

55

70

180

233

30

230

256

309

180

250

212

15

AK0951

240

75

75

240

295

35

290

340

395

180

300

265

10

AK1051

270

95

95

280

360

40

340

390

455

212

360

315

41

AK1251

330

115

110

350

420

45

400

470

540

250

400

375

65



SIZE

k

n

n0

o

p3

q

q1

T2

s

w7

z

v2

v3

AK0652

614

55

48

90

233

90

229

111

14

94

5

95

-

AK0752

678

60

55

105

288

112

265

111

18

109

5

95

-

AK0852

824

76

76

120

341

132

330

111

23

124

5

113

-

AK0951

888

100

100

150

420

160

355

111

27

154

5

113

-

AK1051

1030

115

110

175

513

200

423

115

34

180

5

138

-

AK1251

1245

120

120

205

590

225

476

115

39

210

5

187

173



SIZE

Input Shaft

Hollow Output Bore

d1

L1

L13

L14

t1

u1

w1

D

m

m1

m2

m3

T

U

v3

AK0652

16 k6

40

4

32

18

5

M5x0.8, 12 deep

40

80

180

156

40.3

43.5

12

M16x70L

AK0752

16 k6

40

4

32

18

5

M5x0.8, 12 deep

50

92.5

210

183

50.5

54

14

M16x70L

AK0852

19 k6

40

4

32

21.5

6

M6x1.0, 16 deep

60

105

240

210

60.5

64.5

18

M20x80L

AK0951

19 k6

40

4

32

21.5

6

M6x1.0, 16 deep

70

132.5

300

270

70.5

75

20

M20x80L

AK1051

24 k6

50

5

40

27

8

M8x1.25, 19 deep

80

155

350

313

80.5

85.5

22

M20x80L

AK1251

28 k6

60

5

50

31

8

M8x1.25, 19 deep

100

180

410

373

100.5

106.5

28

M24x110L

all parallel keys are to DIN 6885
